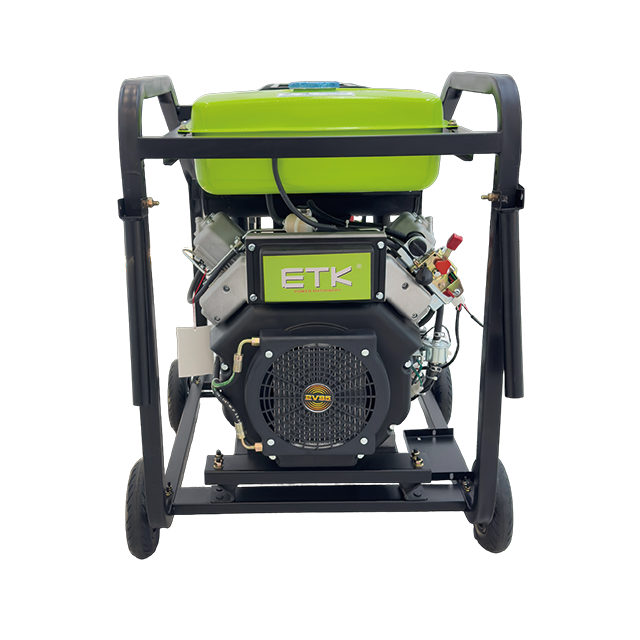

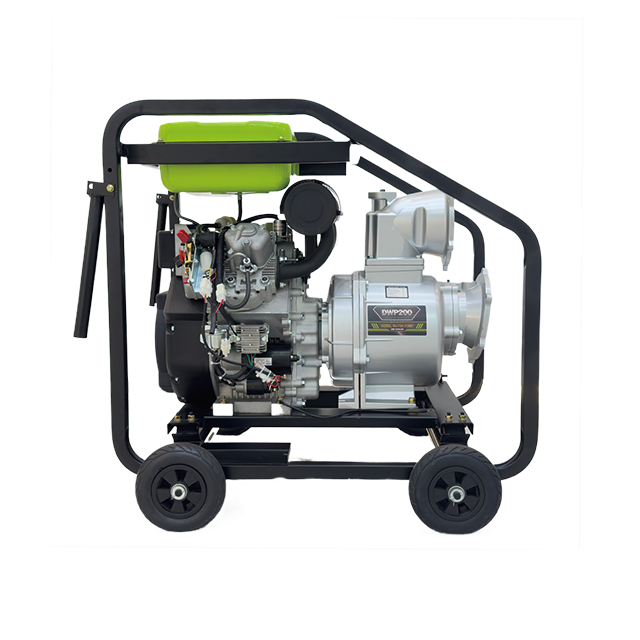

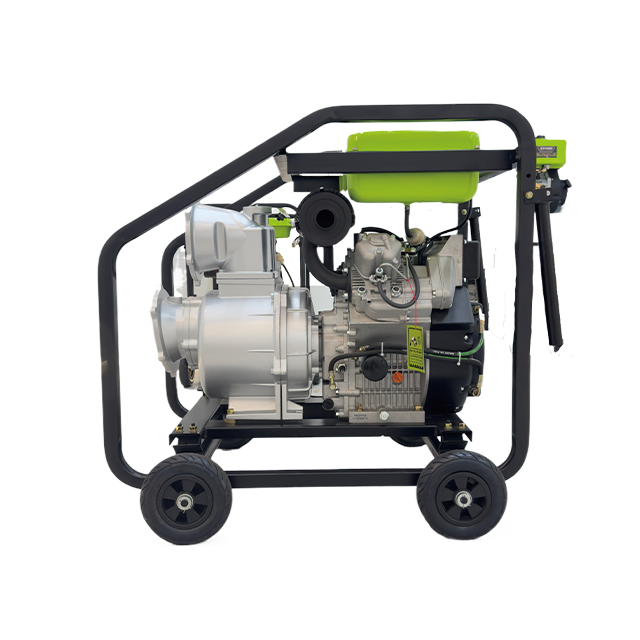

DIESEL WATER PUMP--DWP200
Introduction
Diesel water pump use advanced engines to ensure effective and economical combustion and are renowned for low noise, light vibration, light weight and small size. With aluminum alloy self-suction pump body and cast iron propeller/turbine cover, the pump is endowed with greater endurance. Using international standards of screw threads, the pump has outstanding compatibility and can be used together with various pipes.
Advantages
1. Diesel water pump with CE
2. Skilled technicians and professional engineers
3. Every part's supplier is chosen strictly based on excellent quality
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Standard operation / technical maintenance /manual/tool kits
7. Any questions. Pls do not hesitate to contact our salesperson
| DIESEL WATER PUMP | |
| Model | DWP200 |
| Suction port diameter(mm) | 200 |
| Discharge Port Diameter(mm) | 200 |
| Max Suction Head(m) | 5 |
| Total head(m) | 15 |
| Max Flow Rate(L/min) | 300 |
| Starting Mode | Recoil start |
| Net Weight(kg) | 300 |
| Packing dimensions(L*W*H)mm | 1050*690*865 |
| Engine Model | 2V88F |
| Type | Single-cylinder, Vertical, 4-Stroke, Direct injection,Air-cooled diesel engine |
| Bore* Stroke(mm) | 2V-88*75 |
| Engine Speed(rpm) | 3600 |
| Displacement(cc) | 912 |
| Continuous Output(KW) | 13.8 |
| Maximum Output(KW) | 14.8 |
| Cooling Type | Force air-cooled |
